Product Specifications

Item Number: A300472

Catalogue No.: A070UD31TTI200

Item Description (ERP): A 070 URD 31 TTI 0200

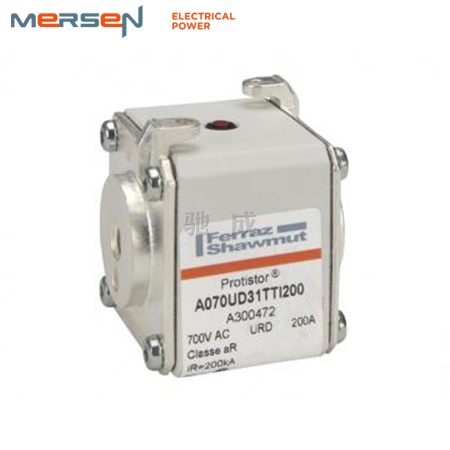

Short Description: PROTISTOR® SB aR, UNC threaded end, TTI, sz.31, 690VAC IEC-700VAC UL, 200A

EAN/UPC Code: 3605340329018

Rated voltage AC UL: 700   V

Rated voltage AC IEC: 690   V

Ampere Rating: 200   A

Speed/Characteristic: aR

Fuse Size: 31

Mounting: Bolted

Clearing I2t At Rated Voltage: 15000   A²s

Melting I2t: 2600   A²s

AC Max I.R./Breaking Capacity: I1: 200   kA

Power Dissipation at Rated Current Value: 45   W

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Brass

Connection/Terminal Type: End Contact with Threaded Holes

Body/Insulating Material: Ceramic

Product Weight: 0.849   lb

Product Width: 2.01   in

Product Length: 1.99   in

Product Height: 2.22   in

Sell Pack Quantity: 3   EACH

Sell Pack Weight: 2.546   lb

Sell Pack Width: 3.35   in

Sell Pack Length: 6.61   in

Sell Pack Height: 2.56   in
