Product Specifications

Item Number: R301085

Catalogue No.: A050UD32TTI1800

Item Description (ERP): A 050 URD 32 TTI 1800

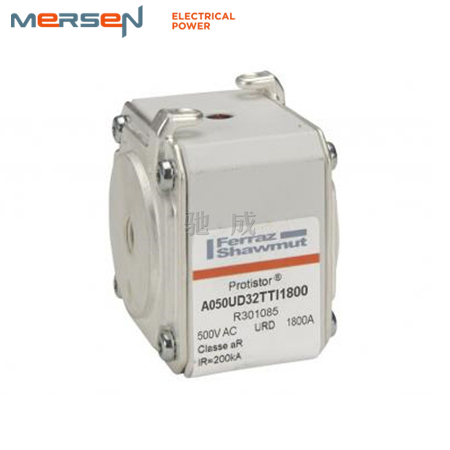

Short Description: PROTISTOR® SB aR, UNC threaded end, TTI, sz.32, 450VAC IEC, 500V US, 1800A

EAN/UPC Code: 3605340336627

Rated voltage AC UL: 500   V

Rated voltage AC IEC: 450   V

Ampere Rating: 1800   A

ROHS Compliant: Yes

Speed/Characteristic: aR

Fuse Size: 32

Mounting: Bolted

Clearing I2t At Rated Voltage: 3700   kA²s

Melting I2t: 1050   kA²s

AC Max I.R./Breaking Capacity: I1: 200   kA

Power Dissipation at Rated Current Value: 195   W

Design Details: Reinforced Terminal

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Brass

Connection/Terminal Type: End Contact with Threaded Holes

Body/Insulating Material: Ceramic

Product Weight: 1.33   lb

Product Width: 2.32   in

Product Length: 1.99   in

Product Height: 2.56   in

Sell Pack Quantity: 3   EACH

Sell Pack Weight: 3.99   lb

Sell Pack Width: 5.71   in

Sell Pack Length: 9.65   in

Sell Pack Height: 3.54   in
