Product Specifications

Item Number: T300213

Catalogue No.: PC232UD69V10CTF

Item Description (ERP): 6,9 URD 232 TT F 1000

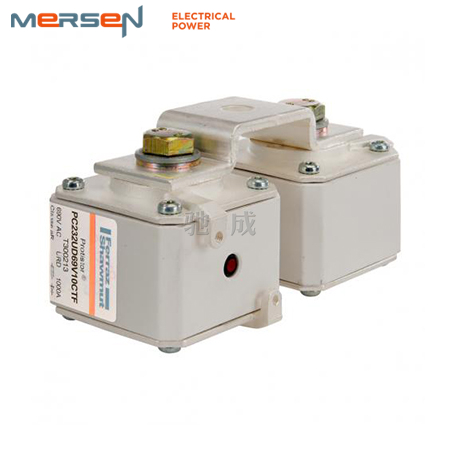

Short Description: PROTISTOR® SB aR, metric threaded holes, TTF, sz.2.32, 690VAC IEC, 1000A

EAN/UPC Code: 3605340325034

Rated voltage AC UL: 700   V

Rated voltage AC IEC: 690   V

Ampere Rating: 1000   A

Speed/Characteristic: aR

Fuse Size: 2x33

Mounting: Bolted

Clearing I2t At Rated Voltage: 590   kA²s

Melting I2t: 111   kA²s

AC Max I.R./Breaking Capacity: I1: 170   kA

Power Dissipation at Rated Current Value: 165   W

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Brass

Connection/Terminal Type: End Contact with Threaded Holes

Body/Insulating Material: Ceramic

Product Weight: 2.934   lb

Product Width: 5.39   in

Product Length: 3.02   in

Product Height: 2.56   in

Sell Pack Quantity: 1   EACH

Sell Pack Weight: 2.934   lb

Sell Pack Width: 3.62   in

Sell Pack Length: 8.07   in

Sell Pack Height: 2.76   in
