Product Specifications

Item Number: G301329

Catalogue No.: PC72GB69V250TF

Item Description (ERP): 6,9 GRB 72 TTF 0250

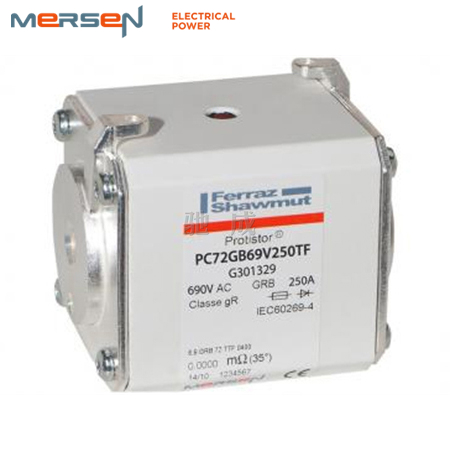

Short Description: Protistor SB fuse-link gR, 690VAC, size 72, 250A, TTF threaded terminals

EAN/UPC Code: 3605340339765

Rated voltage AC IEC: 690   V

Ampere Rating: 250   A

Speed/Characteristic: gR

Fuse Size: 72

Mounting: Bolted

Clearing I2t At Rated Voltage: 50   kA²s

Melting I2t: 8.6   kA²s

AC Max I.R./Breaking Capacity: I1: 150   kA

Power Dissipation at Rated Current Value: 49   W

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Brass

Connection/Terminal Type: End Contact with Threaded Holes

Body/Insulating Material: Ceramic

Product Weight: 1.62   lb

Product Width: 2.32   in

Product Length: 2.91   in

Product Height: 2.48   in

Sell Pack Quantity: 3   EACH

Sell Pack Weight: 4.861   lb

Sell Pack Width: 4.33   in

Sell Pack Length: 5.12   in

Sell Pack Height: 3.15   in
