Product Specifications

Item Number: Y301022

Catalogue No.: A130UD70TTI280

Item Description (ERP): A 130 URD 70 TTI 0280

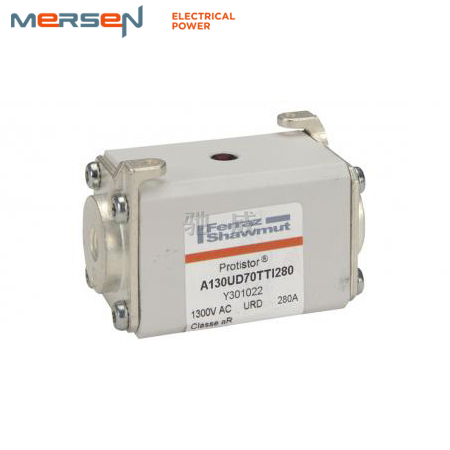

Short Description: Size 70 type TTI 5/16"-18 unified coarse threaded terminals 2 aR 280 A 1200VAC

EAN/UPC Code: 3605340576542

Rated voltage AC UL: 1300   V

Rated voltage AC IEC: 1200   V

Ampere Rating: 280   A

Speed/Characteristic: aR

Fuse Size: 70

Mounting: Bolted

Clearing I2t At Rated Voltage: 106000   A²s

Melting I2t: 14200   A²s

AC Max I.R./Breaking Capacity: I1: 150   kA

Power Dissipation at Rated Current Value: 61   W

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Brass

Connection/Terminal Type: End Contact with Threaded Holes

Body/Insulating Material: Ceramic

Product Weight: 0.772   lb

Product Width: 1.57   in

Product Length: 2.91   in

Product Height: 1.95   in

Sell Pack Quantity: 3   EACH

Sell Pack Weight: 2.315   lb

Sell Pack Width: 3.35   in

Sell Pack Length: 5.31   in

Sell Pack Height: 21.65   in
