Product Specifications

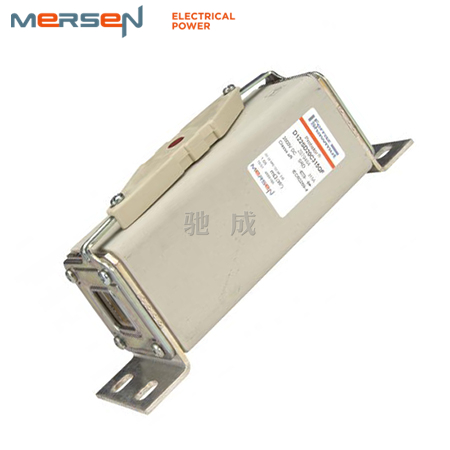

Item Number: Z079464

Catalogue No.: D122SD20C315QF

Item Description (ERP): CC 20 SRD 122 QF 315

Short Description: Size 122 aR 2000VDC aR 315 A 2000VDC

EAN/UPC Code: 3605340034301

Rated voltage DC IEC: 2000   V

Ampere Rating: 315   A

ROHS Compliant: Yes

Speed/Characteristic: aR

Fuse Size: 122

Mounting: Bolted

Clearing I2t At Rated Voltage: 117000   A²s

Max. Rated Breaking Capacity DC: 100 kA

Power Dissipation at Rated Current Value: 150   W

Design Details: aR

Indication System: Yes

Indication System Type: Striker

Connection/Terminal Material: Silver-Plated Copper

Connection/Terminal Type: L Brackets

Body/Insulating Material: Ceramic

Product Weight: 3.99   lb

Product Width: 2.56   in

Product Length: 8.54   in

Product Height: 3.01   in

Sell Pack Quantity: 1   EACH

Sell Pack Weight: 3.99   lb

Sell Pack Width: 4.92   in

Sell Pack Length: 12.2   in

Sell Pack Height: 3.35   in
