General specifications

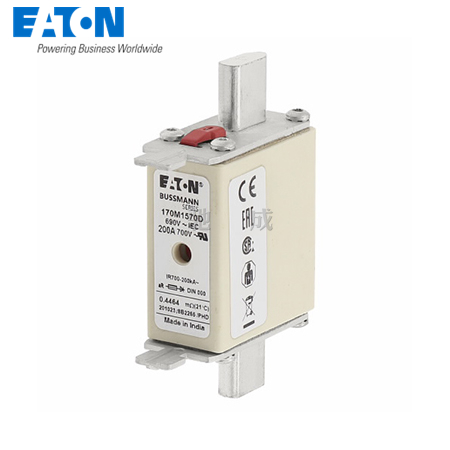

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M1570D

UPC:  051712334914

EAN:  5027590441384

Product Length/Depth:  79 mm

Product Height:  51 mm

Product Width:  21 mm

Product Weight:  136 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  200 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  31000 at 660 V

Pre arc (I2T):  4350

Watt losses:  29.5 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  000

Fitted with::  Dual indicator
