General specifications

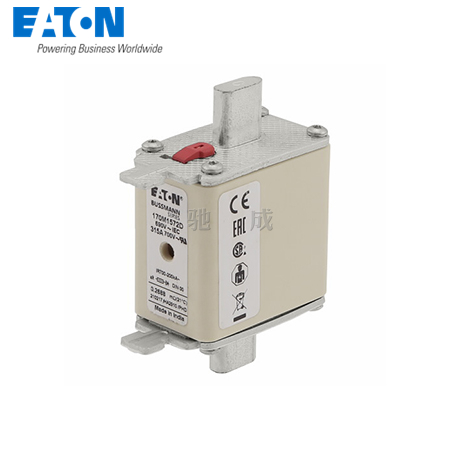

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M1572D

UPC:  051712334938

EAN:  5027590441421

Product Length/Depth:  79 mm

Product Height:  69 mm

Product Width:  30 mm

Product Weight:  204.1666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  315 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  84500 at 660 V

Pre arc (I2T):  12000

Watt losses:  45 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00

Fitted with::  Dual indicator
