General specifications

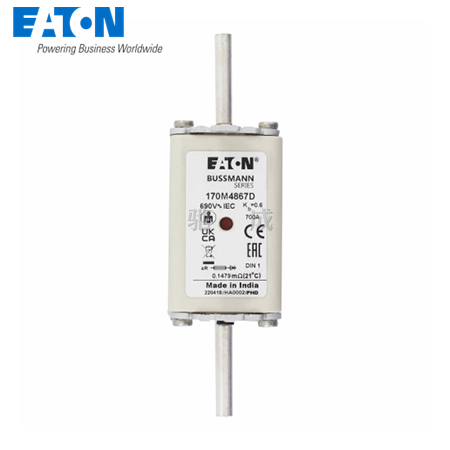

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4867D

UPC:  051712334143

EAN:  5027590454889

Product Length/Depth:  135 mm

Product Height:  64 mm

Product Width:  40 mm

Product Weight:  426.8333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  700 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  495000 at 660 V

Pre arc (I2T):  69500

Watt losses:  39 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1

Fitted with::  Dual indicator
