General specifications

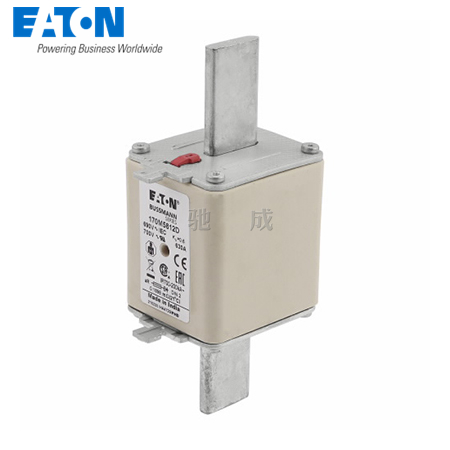

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5812D

UPC:  051712334525

EAN:  5027590460880

Product Length/Depth:  150 mm

Product Height:  72 mm

Product Width:  54 mm

Product Weight:  678.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  630 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  295000 at 660 V

Pre arc (I2T):  41000

Watt losses:  42 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  2

Fitted with::  Dual indicator
