General specifications

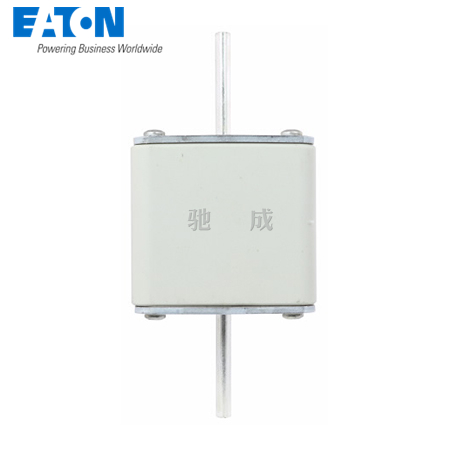

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M8554D

UPC:  051712335294

EAN:  5027590252706

Product Length/Depth:  150 mm

Product Height:  87 mm

Product Width:  71 mm

Product Weight:  1130 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  1250 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  2150000 at 660 V

Pre arc (I2T):  300000

Watt losses:  61 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  3

Fitted with::  Dual indicator
