General specifications

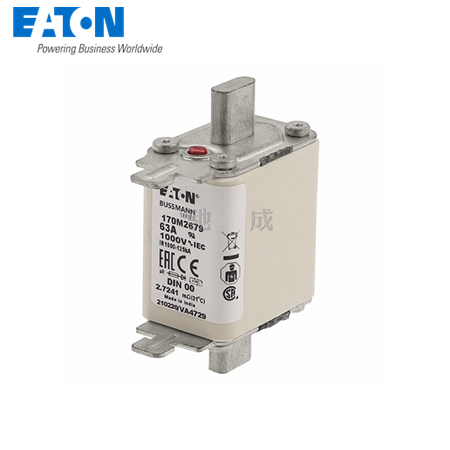

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2679

UPC:  051712563505

EAN:  5027590442626

Product Length/Depth:  79 mm

Product Height:  60 mm

Product Width:  30 mm

Product Weight:  207.1666667 g

Warranty:  Not Applicable

Compliances:  Contact factory
RoHS Compliant

Electrical data

Amperage Rating:  63 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC

Watt losses:  16 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  00

Fitted with::  Type T Indicator for micro
