General specifications

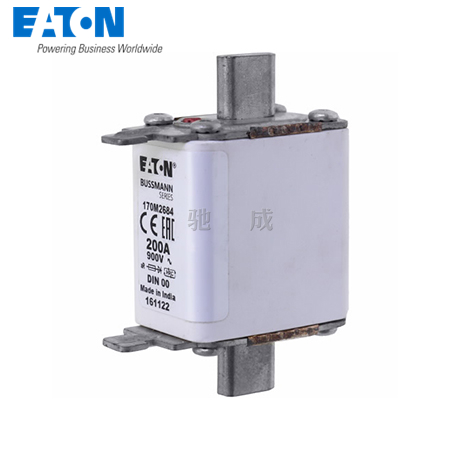

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2684

UPC:  051712678537

EAN:  5027590442725

Product Length/Depth:  217 mm

Product Height:  65 mm

Product Width:  85 mm

Product Weight:  224.6666667 g

Warranty:  Not Applicable

Compliances:  Contact factory
RoHS Compliant

Electrical data

Amperage Rating:  200 A

Voltage rating:  900 V (IEC)

Voltage type:  AC

Watt losses:  31 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  00

Fitted with::  Type T Indicator for micro
