General specifications

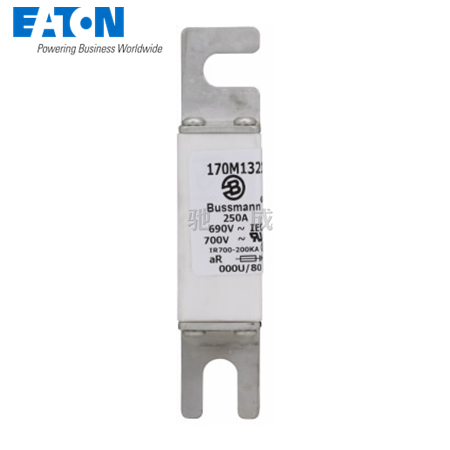

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M1321

UPC:  051712216579

EAN:  5027590515535

Product Length/Depth:  105 mm

Product Height:  46 mm

Product Width:  300 mm

Product Weight:  140.3 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  250 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  51500 at 660 V

Pre arc (I2T):  7750

Watt losses:  42 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  000
