General specifications

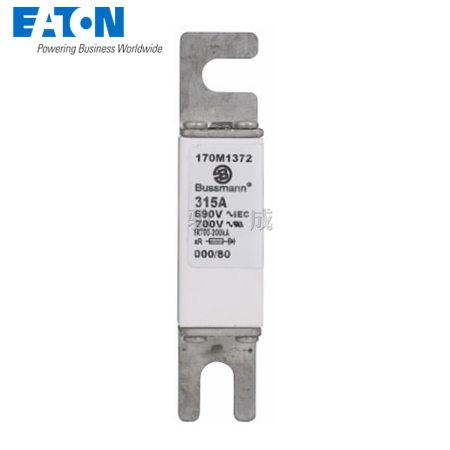

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M1372

UPC:  051712216739

EAN:  5027590440899

Product Length/Depth:  105 mm

Product Height:  46 mm

Product Width:  300 mm

Product Weight:  135.8 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  315 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  80500 at 660 V

Pre arc (I2T):  12000

Watt losses:  52 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  000
