General specifications

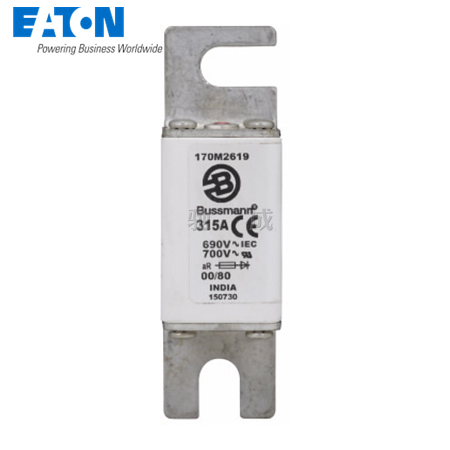

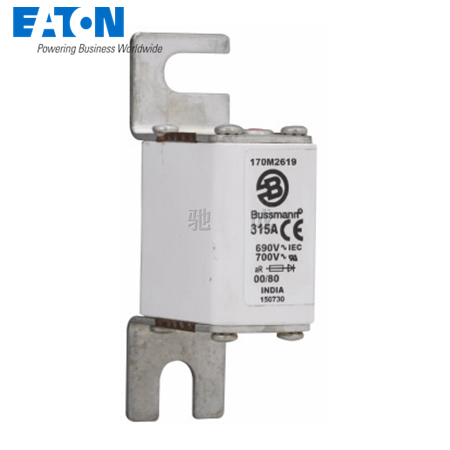

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2619

UPC:  051712254168

EAN:  5027590442282

Product Length/Depth:  233 mm

Product Height:  66 mm

Product Width:  140 mm

Product Weight:  231.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  315 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  68500 at 660 V

Pre arc (I2T):  10000

Watt losses:  55 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00
