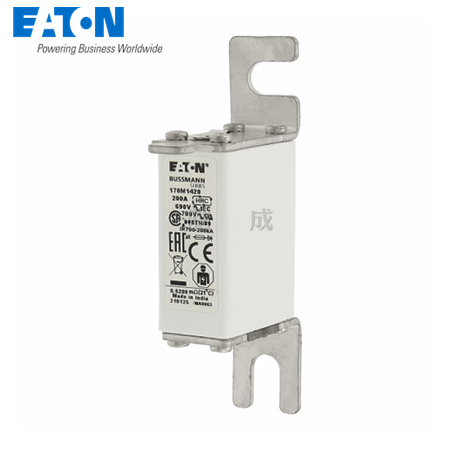

Product Name: Eaton Bussmann series high speed square body fuse
Catalog Number: 170M1420
UPC: 051712216869
EAN: 5027590441018
Product Length/Depth: 100 mm
Product Height: 53 mm
Product Width: 21 mm
Product Weight: 136.1 g
Warranty: Not Applicable
Compliances: CE Marked
RoHS Compliant
Certifications: UL Recognized
IEC Rated
Amperage Rating: 200 A
Voltage rating: 690 V (IEC), 700 V (UL)
Voltage type: AC
Clearing (I2T): 28000 at 660 V
Pre arc (I2T): 4200
Watt losses: 37 W
Breaking capacity: 200 kA
Class: Class aR
Fuse size: 000
