General specifications

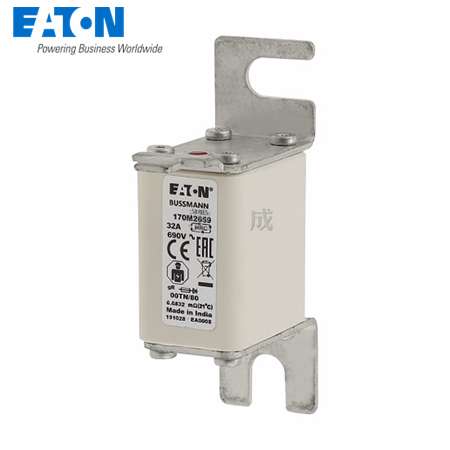

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2659

UPC:  051712792134

EAN:  5027590442350

Product Length/Depth:  233 mm

Product Height:  66 mm

Product Width:  140 mm

Product Weight:  235.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  32 A

Voltage rating:  690 V (IEC)

Voltage type:  AC

Clearing (I2T):  195 at 660 V

Pre arc (I2T):  28.5

Watt losses:  7 W

Breaking capacity:  200 kA

Class:  Class gR
Class aR

Product specification

Fuse size:  00
