General specifications

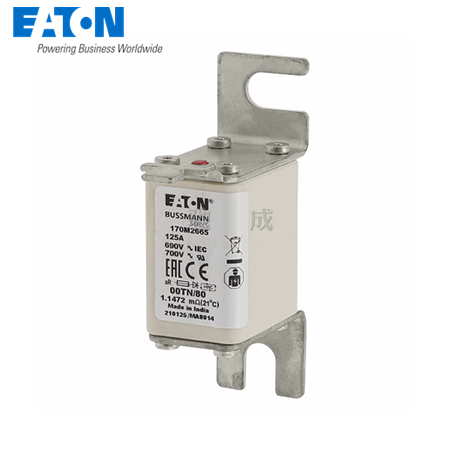

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2665

UPC:  051712254236

EAN:  5027590442428

Product Length/Depth:  100 mm

Product Height:  67 mm

Product Width:  30 mm

Product Weight:  220.8333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  125 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  6950 at 660 V

Pre arc (I2T):  1000

Watt losses:  25 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00
