General specifications

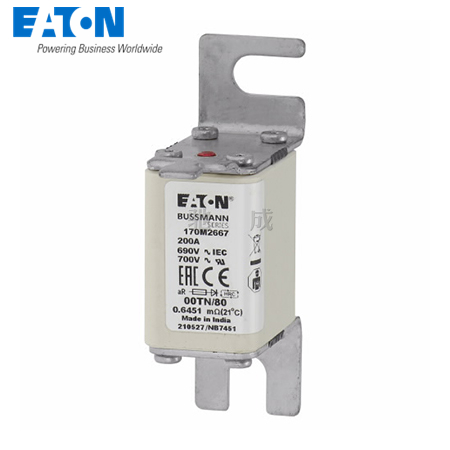

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2667

UPC:  051712792875

EAN:  5027590442442

Product Length/Depth:  100 mm

Product Height:  67 mm

Product Width:  30 mm

Product Weight:  224.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  200 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  23000 at 660 V

Pre arc (I2T):  3400

Watt losses:  35 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00
