General specifications

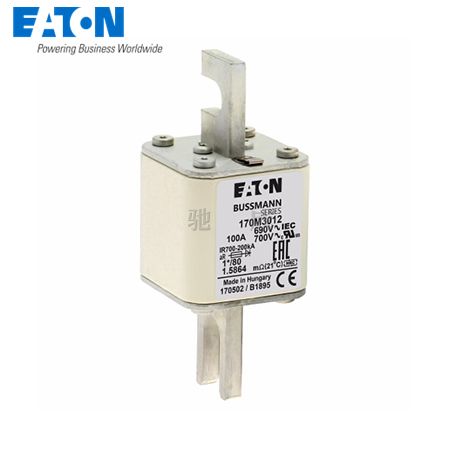

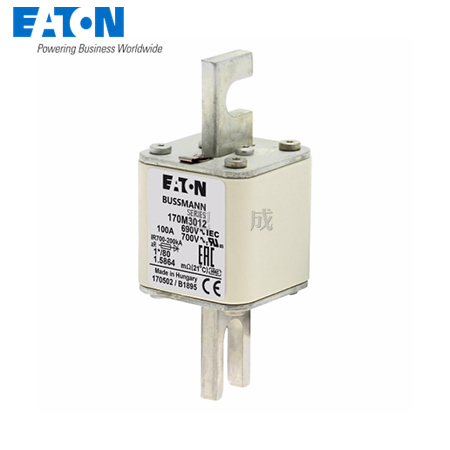

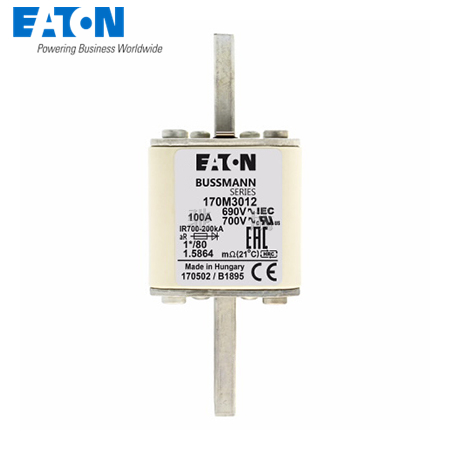

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3012

UPC:  051712254571

EAN:  5027590443579

Product Length/Depth:  305 mm

Product Height:  65 mm

Product Width:  145 mm

Product Weight:  310 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  100 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  2450 at 660 V

Pre arc (I2T):  360

Watt losses:  21 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1*
