General specifications

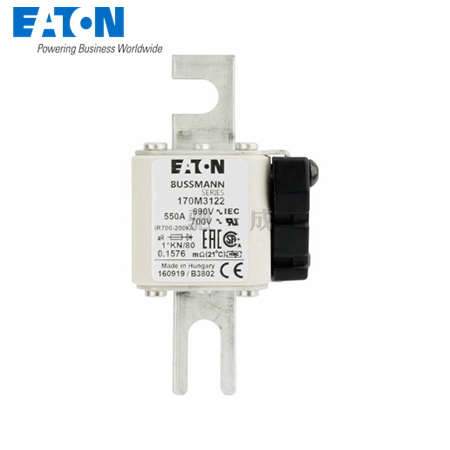

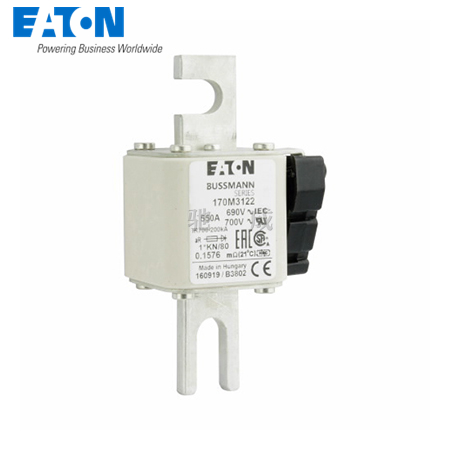

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3122

UPC:  051712254915

EAN:  5027590444026

Product Length/Depth:  290 mm

Product Height:  62 mm

Product Width:  142 mm

Product Weight:  310 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  550 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  230000 at 660 V

Pre arc (I2T):  34000

Watt losses:  75 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1*
