General specifications

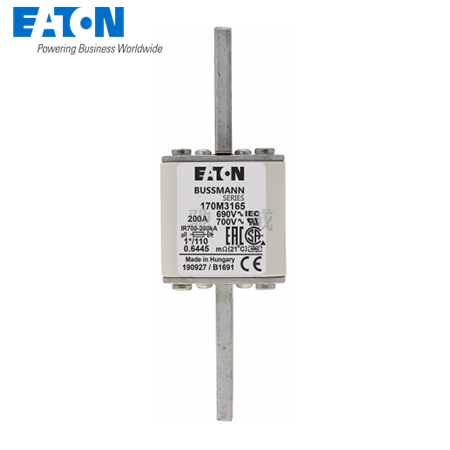

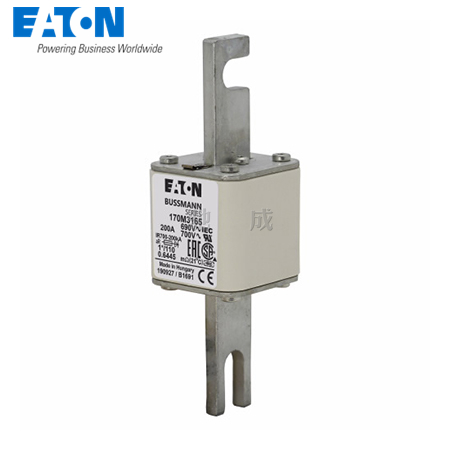

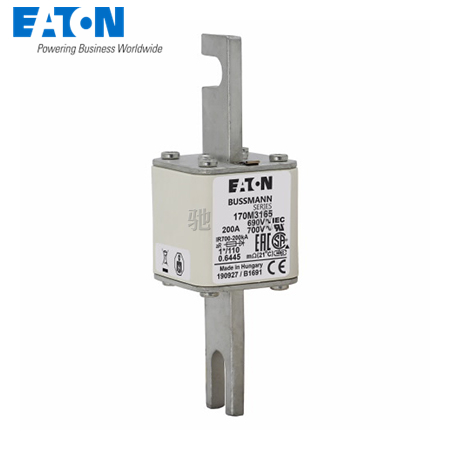

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3165

UPC:  051712794978

EAN:  5027590444514

Product Length/Depth:  305 mm

Product Height:  65 mm

Product Width:  145 mm

Product Weight:  343.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  200 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  15000 at 660 V

Pre arc (I2T):  2200

Watt losses:  35 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1*
