General specifications

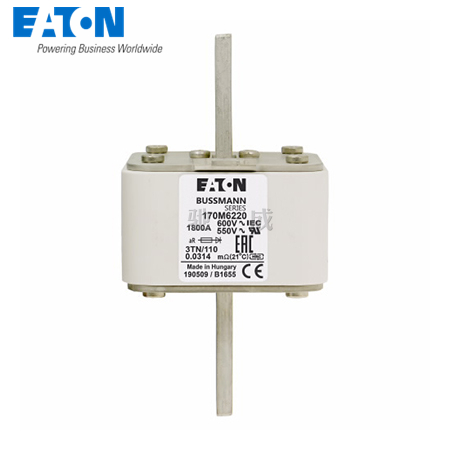

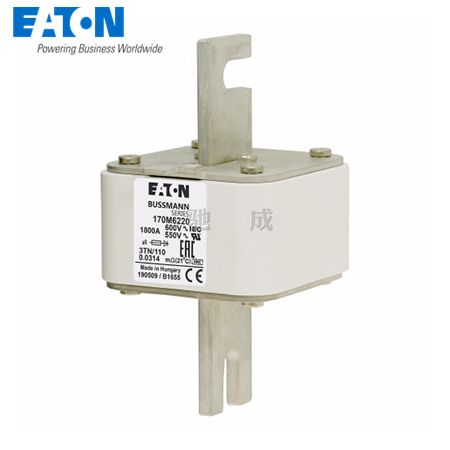

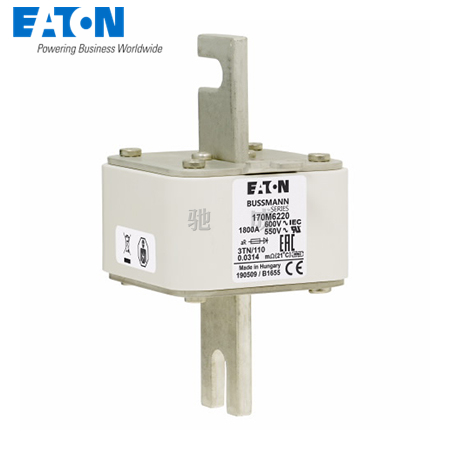

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M6220

UPC:  051712263443

EAN:  5996516018422

Product Length/Depth:  168 mm

Product Height:  76 mm

Product Width:  95 mm

Product Weight:  1489 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  1800 A

Voltage rating:  600 Vac

Voltage type:  AC

Clearing (I2T):  5250000 at 660 V

Pre arc (I2T):  290000

Watt losses:  165 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  3
