General specifications

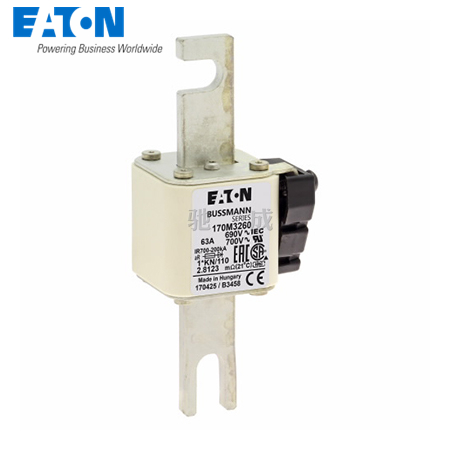

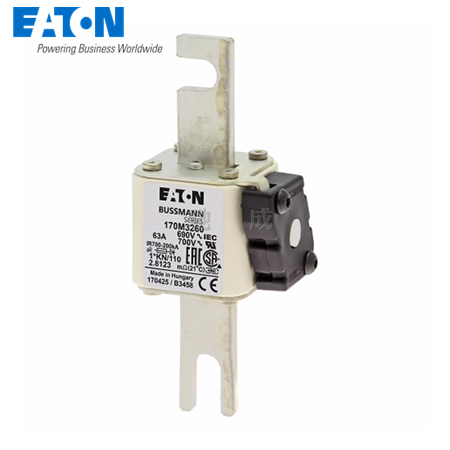

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3260

UPC:  051712255448

EAN:  5027590446525

Product Length/Depth:  305 mm

Product Height:  65 mm

Product Width:  145 mm

Product Weight:  358.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  63 A

Voltage rating:  690 V

Voltage type:  AC

Clearing (I2T):  770 at 660 V

Pre arc (I2T):  115

Watt losses:  14 W

Breaking capacity:  200 kA

Class:  Class aR
