General specifications

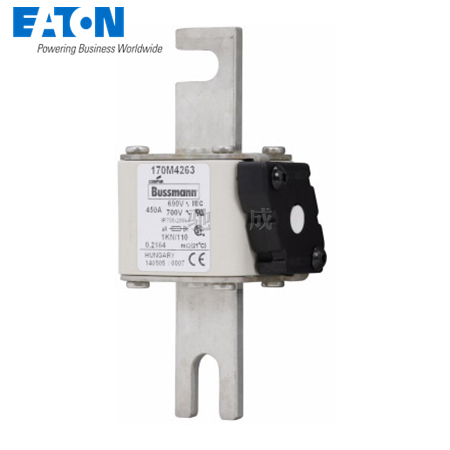

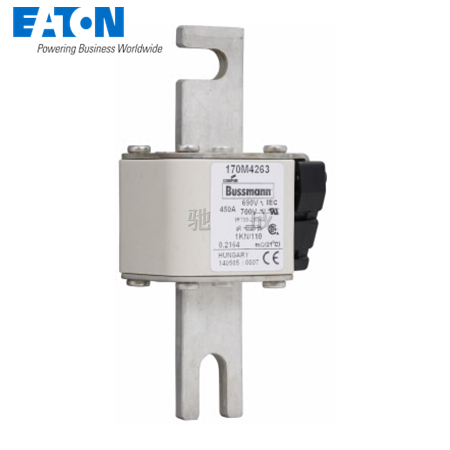

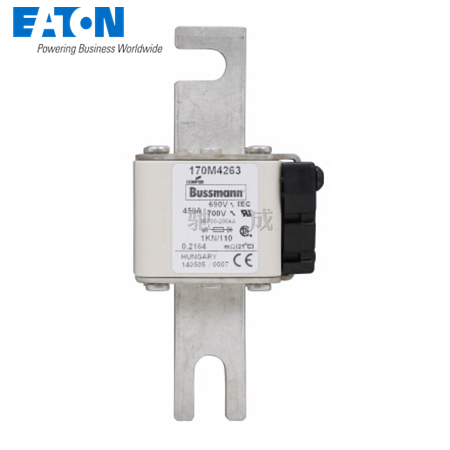

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4263

UPC:  051712258319

EAN:  5027590452106

Product Length/Depth:  245 mm

Product Height:  62 mm

Product Width:  142 mm

Product Weight:  499.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  450 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  170000 at 660 V

Pre arc (I2T):  8500

Watt losses:  70 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1
