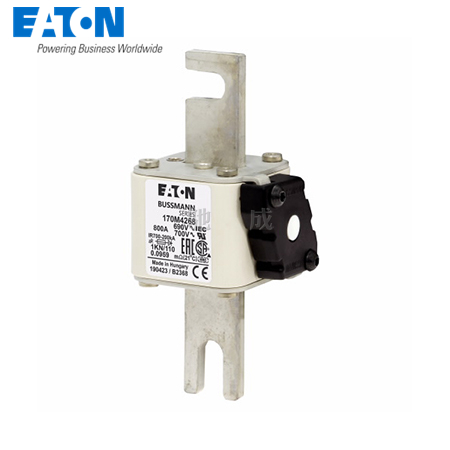

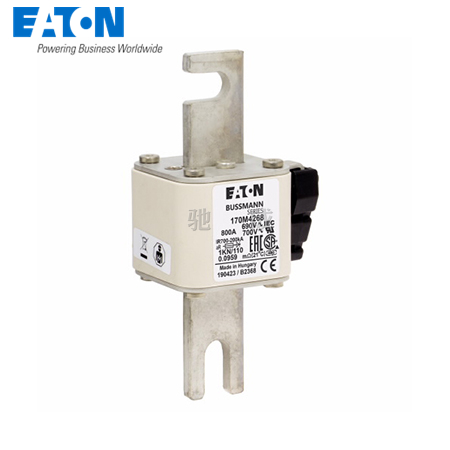

Product Name: Eaton Bussmann series high speed square body fuse
Catalog Number: 170M4268
UPC: 051712258364
EAN: 5027590452151
Product Length/Depth: 245 mm
Product Height: 62 mm
Product Width: 142 mm
Product Weight: 504.6666667 g
Warranty: Not Applicable
Compliances: CE Marked
RoHS Compliant
Certifications: IEC Rated
UL Recognized
Amperage Rating: 800 A
Voltage rating: 690 V (IEC), 700 V (UL)
Voltage type: AC
Clearing (I2T): 850000 at 660 V
Pre arc (I2T): 52000
Watt losses: 95 W
Breaking capacity: 200 kA
Class: Class aR
Fuse size: 1
