General specifications

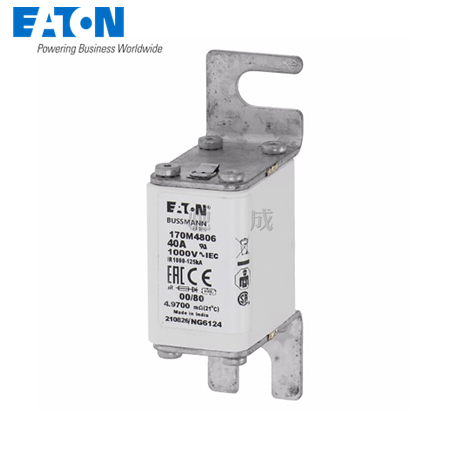

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4806

UPC:  051712679213

EAN:  5027590454216

Product Length/Depth:  233 mm

Product Height:  66 mm

Product Width:  140 mm

Product Weight:  228.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  40 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC

Clearing (I2T):  690 at 1000 V

Pre arc (I2T):  100

Watt losses:  11 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  00
