General specifications

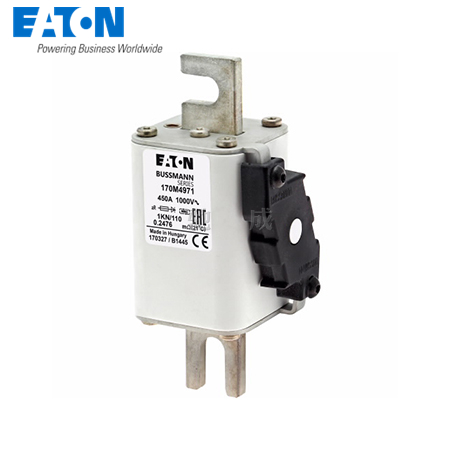

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4971

UPC:  051712679602

EAN:  5027590455206

Product Length/Depth:  245 mm

Product Height:  62 mm

Product Width:  142 mm

Product Weight:  218 g

Compliances:  CE
RoHS Compliant
EAC

Certifications:  IEC 60269-4
DIN

Electrical data

Amperage Rating:  450 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC/DC

Watt losses:  80 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  1
