General specifications

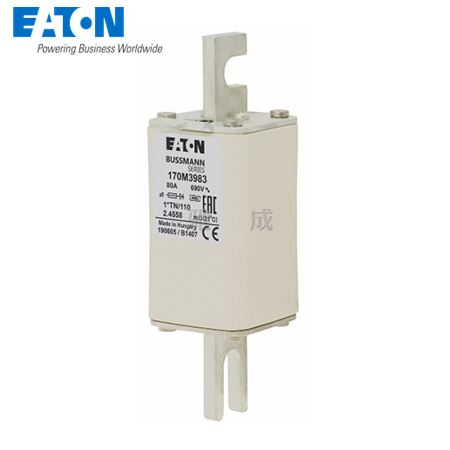

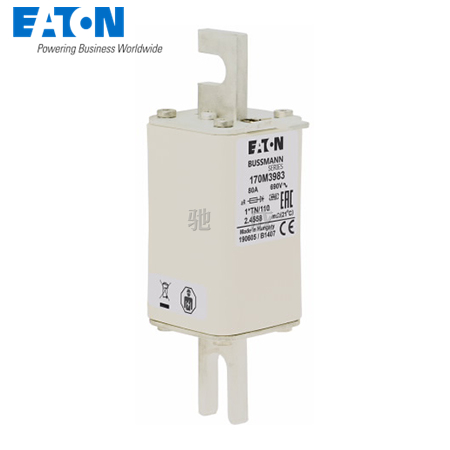

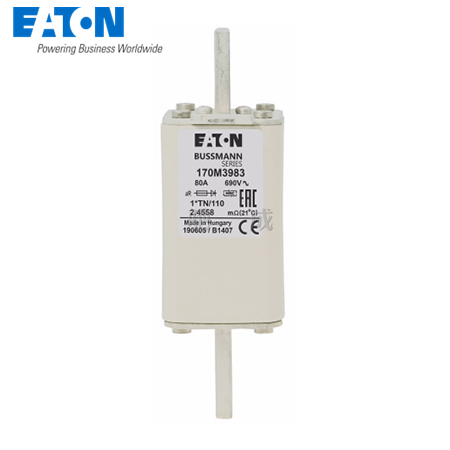

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3983

UPC:  051712678995

EAN:  5027590450768

Product Length/Depth:  305 mm

Product Height:  65 mm

Product Width:  145 mm

Product Weight:  319 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  80 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC

Clearing (I2T):  2750 at 1000 V

Pre arc (I2T):  460

Watt losses:  30 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  1*
