General specifications

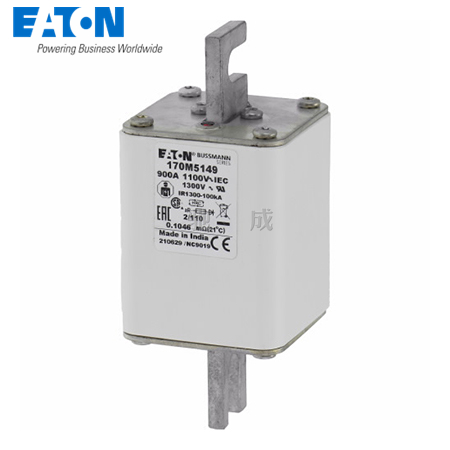

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5149

UPC:  051712260251

EAN:  5027590455923

Product Length/Depth:  284 mm

Product Height:  67 mm

Product Width:  175 mm

Product Weight:  634 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  900 A

Voltage rating:  1100 V

Voltage type:  AC

Clearing (I2T):  1750000 at 1000 V

Pre arc (I2T):  360000

Watt losses:  122 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  2
