General specifications

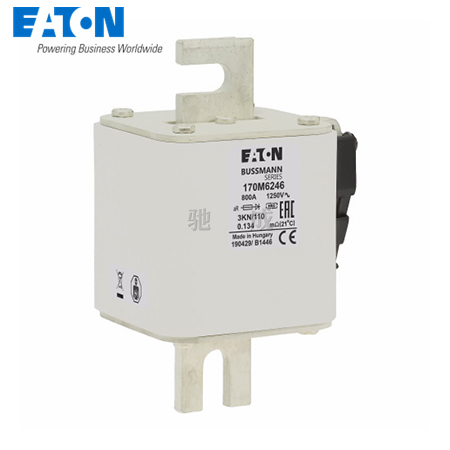

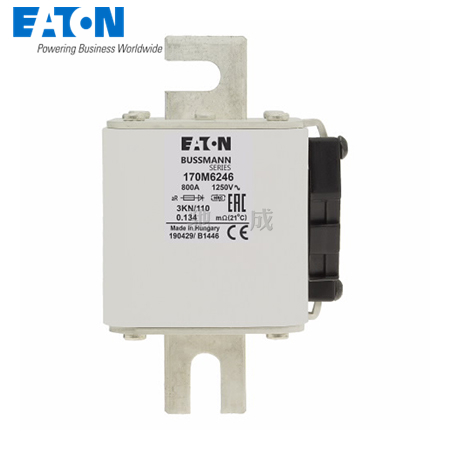

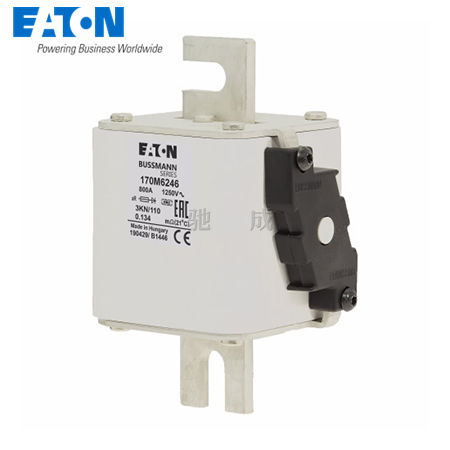

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M6246

UPC:  051712793612

EAN:  5996516018569

Product Length/Depth:  168 mm

Product Height:  76 mm

Product Width:  95 mm

Product Weight:  961 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  800 A

Voltage rating:  1250 V (IEC), 1300 V (UL)

Voltage type:  AC

Clearing (I2T):  995000 at 1000 V, 1300000 at 1250 V

Pre arc (I2T):  205000

Watt losses:  122 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  3
