General specifications

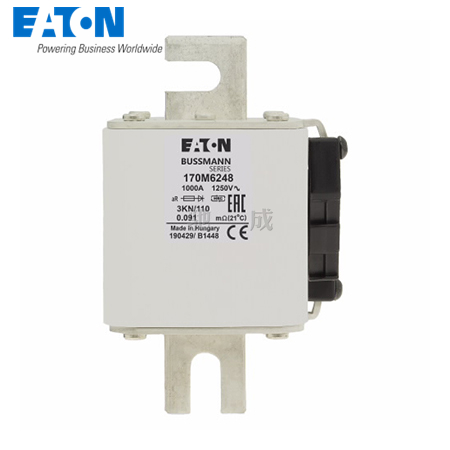

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M6248

UPC:  051712793629

EAN:  5996516018583

Product Length/Depth:  168 mm

Product Height:  76 mm

Product Width:  95 mm

Product Weight:  961 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  1000 A

Voltage rating:  1250 V (IEC), 1300 V (UL)

Voltage type:  AC

Clearing (I2T):  2150000 at 1000 V, 2750000 at 1250 V

Pre arc (I2T):  450000

Watt losses:  135 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  3
