General specifications

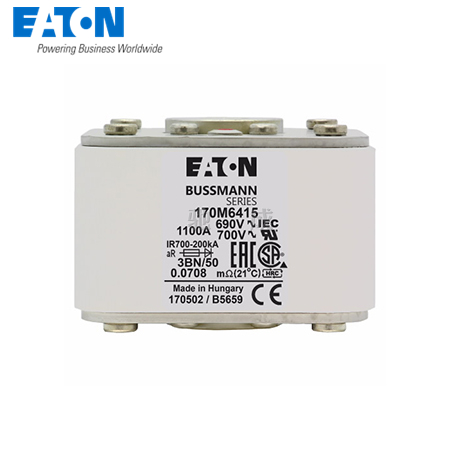

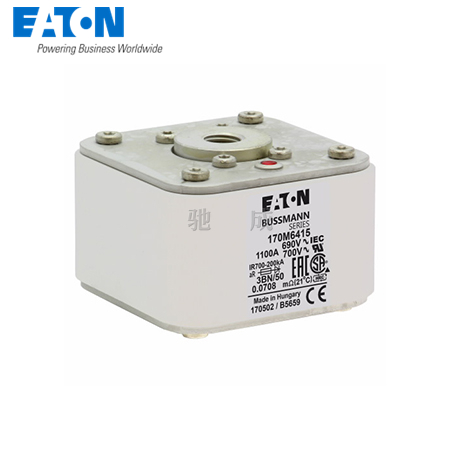

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M6415

UPC:  051712264136

EAN:  5027590462105

Product Length/Depth:  53 mm

Product Height:  76 mm

Product Width:  76 mm

Product Weight:  825 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  1100 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  130000 at 660 V

Pre arc (I2T):  190000

Watt losses:  130 W

Breaking capacity:  200 kA

Class:  Class aR
Class gBat

Product specification

Fuse size:  3
