General specifications

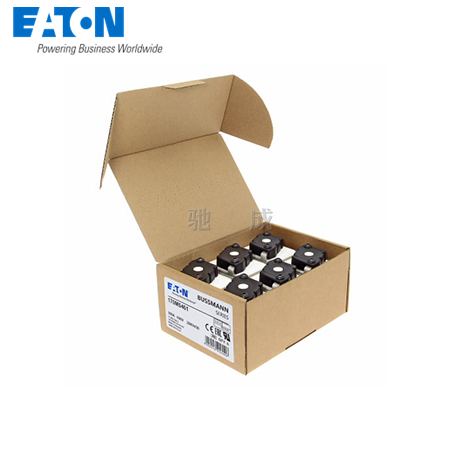

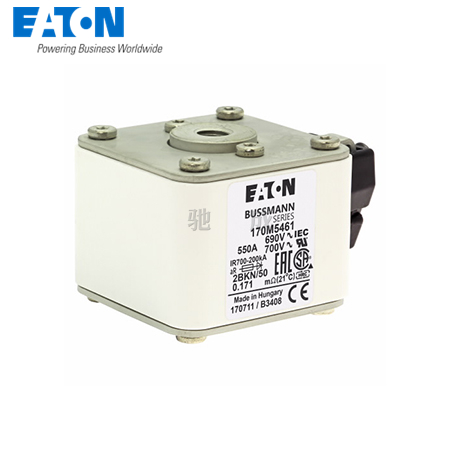

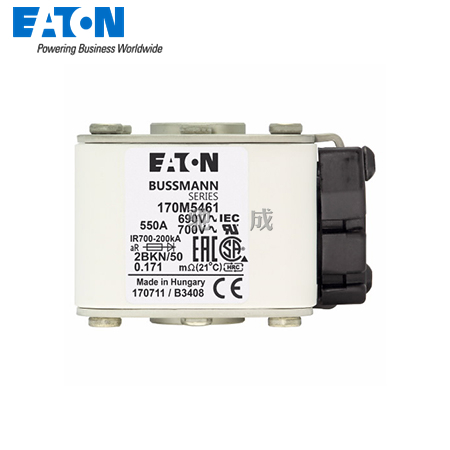

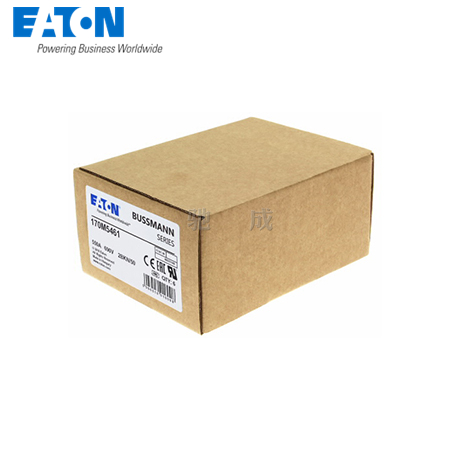

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5461

UPC:  051712261371

EAN:  5027590457286

Product Length/Depth:  77 mm

Product Height:  59 mm

Product Width:  51 mm

Product Weight:  560.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  550 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  190000 at 660 V

Pre arc (I2T):  28000

Watt losses:  80 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  2

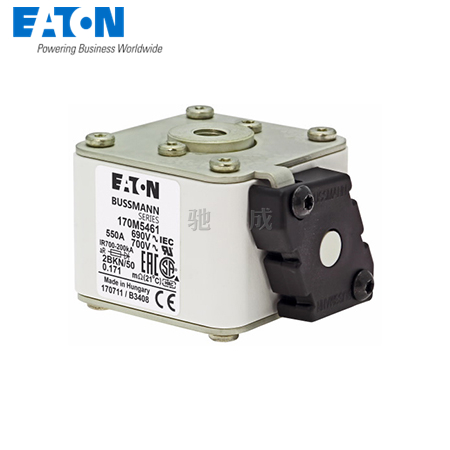

Fitted with::  Type K Indicator for micro
