General specifications

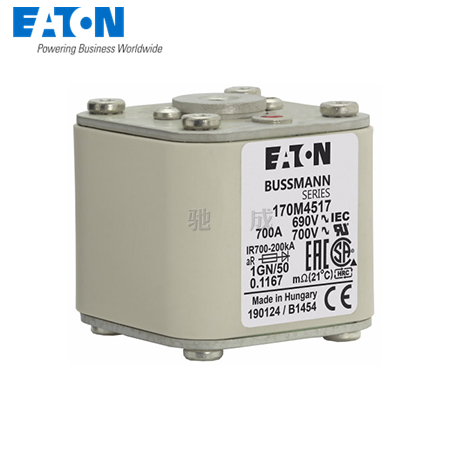

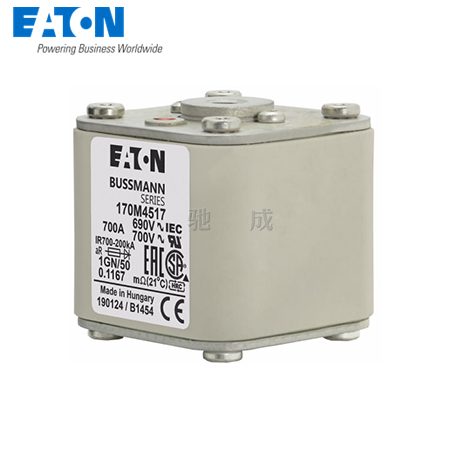

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4517

UPC:  051712259194

EAN:  5027590321662

Product Length/Depth:  .001 mm

Product Height:  .001 mm

Product Width:  .001 mm

Product Weight:  140.613 g

Compliances:  RoHS Compliant
EAC
CE

Certifications:  IEC
UL

Electrical data

Amperage Rating:  700 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  465000 at 660 V

Pre arc (I2T):  69500

Watt losses:  85 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1
