General specifications

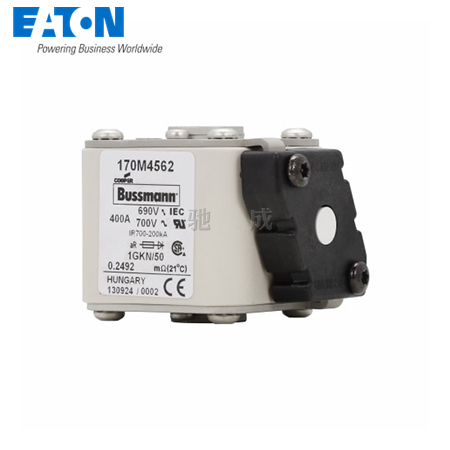

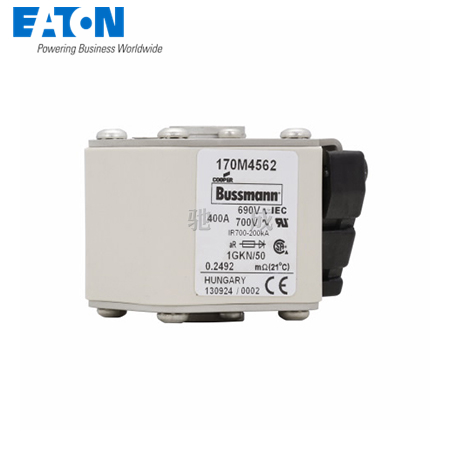

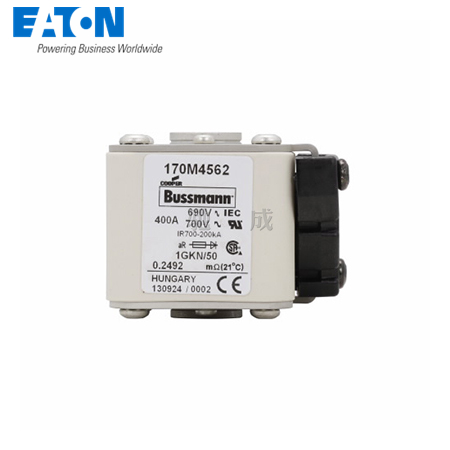

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4562

UPC:  051712259255

EAN:  5027590453516

Product Length/Depth:  170 mm

Product Height:  52 mm

Product Width:  72 mm

Product Weight:  397.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  400 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  91500 at 660 V

Pre arc (I2T):  13500

Watt losses:  65 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1

Fitted with::  Type K Indicator for micro
