General specifications

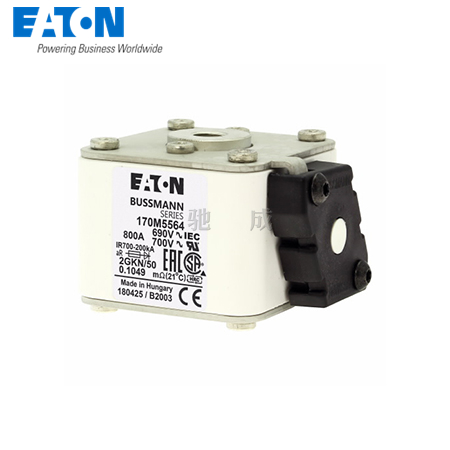

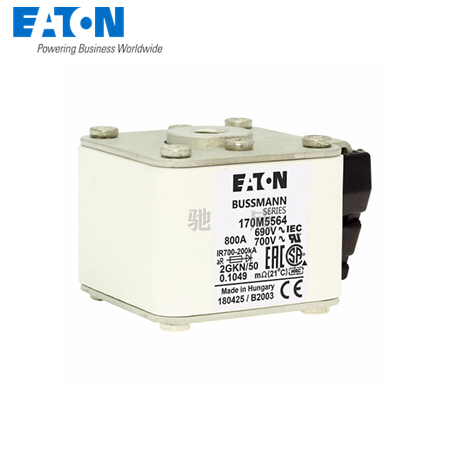

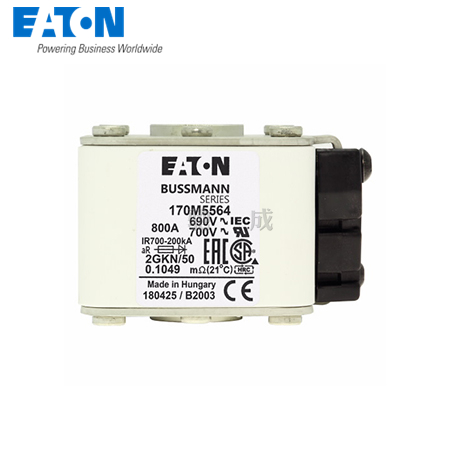

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5564

UPC:  051712261654

EAN:  5027590457682

Product Length/Depth:  168 mm

Product Height:  80 mm

Product Width:  124 mm

Product Weight:  559.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  800 A

Voltage rating:  690 V (IEC), 700 V (UL)

Voltage type:  AC

Clearing (I2T):  575000 at 660 V

Pre arc (I2T):  86000

Watt losses:  105 W

Breaking capacity:  200 kA

Class:  Class aR
Class gR

Product specification

Fuse size:  2

Fitted with::  Type K Indicator for micro
