General specifications

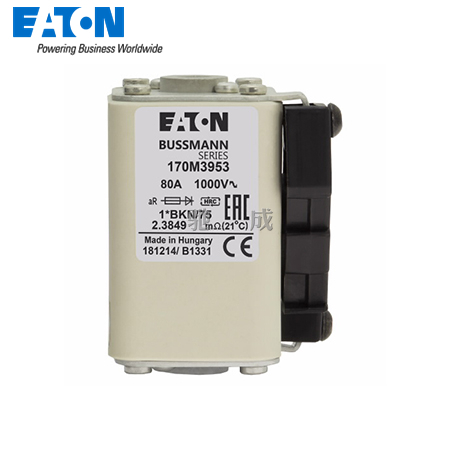

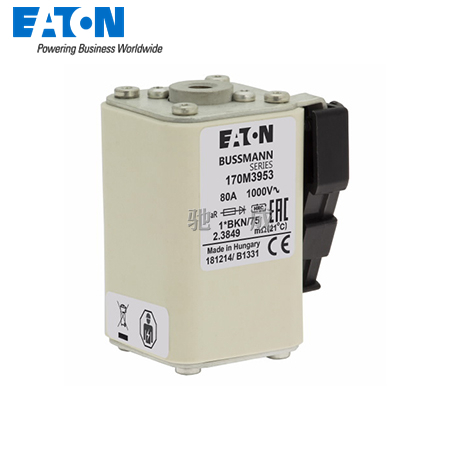

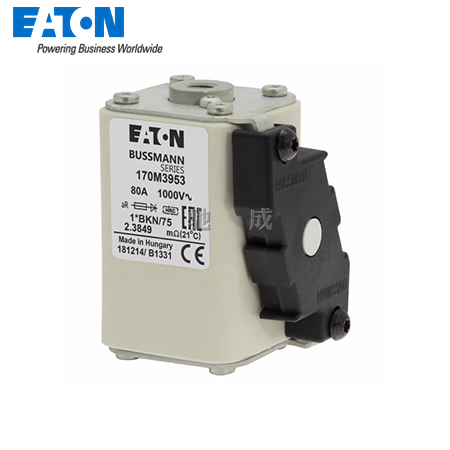

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3953

UPC:  051712678780

EAN:  5027590450577

Product Length/Depth:  96 mm

Product Height:  50 mm

Product Width:  170 mm

Product Weight:  403 g

Compliances:  RoHS Compliant
EAC
CE
CE

Certifications:  IEC 60269-4

Electrical data

Amperage Rating:  80 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC

Clearing (I2T):  2750 at 1000 V

Pre arc (I2T):  460

Watt losses:  30 W

Breaking capacity:  125 kA

Class:  Class aR

Product specification

Fuse size:  1*

Fitted with::  Type K Indicator for micro
