General specifications

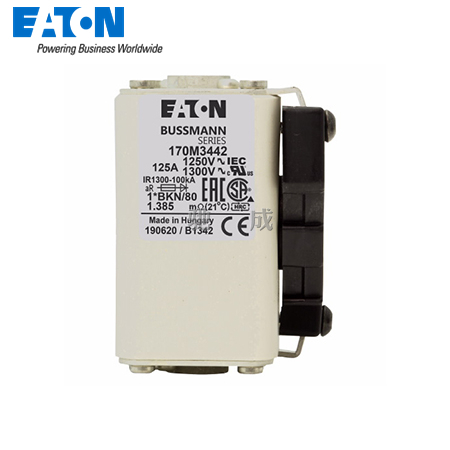

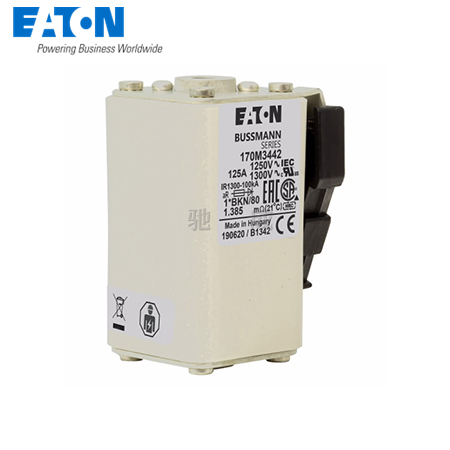

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3442

UPC:  051712256131

EAN:  5027590447737

Product Length/Depth:  75 mm

Product Height:  59 mm

Product Width:  45 mm

Product Weight:  370 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  125 A

Voltage rating:  1250 V (IEC), 1300 V (UL)

Voltage type:  AC

Clearing (I2T):  9000 at 1000 V, 11500 at 1250 V

Pre arc (I2T):  1450

Watt losses:  35 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  1*

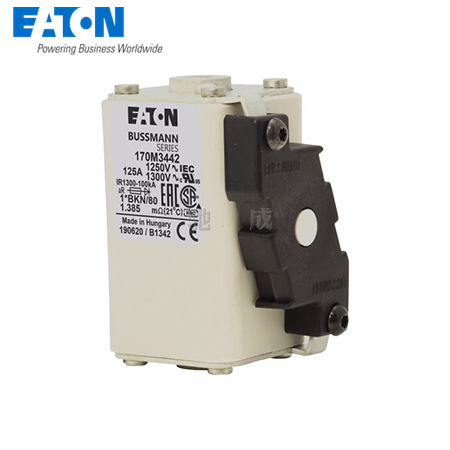

Fitted with::  Type K Indicator for micro
