General specifications

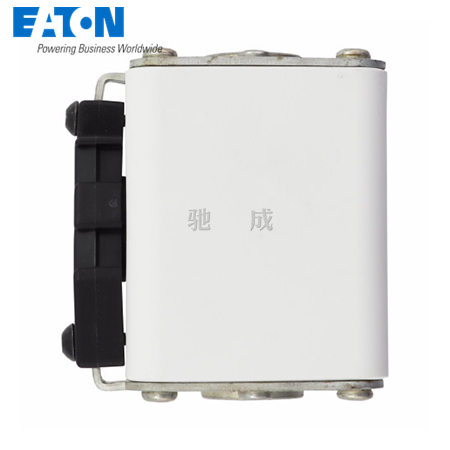

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5448

UPC:  051712261340

EAN:  5027590457217

Product Length/Depth:  92 mm

Product Height:  60 mm

Product Width:  163 mm

Product Weight:  818 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  800 A

Voltage rating:  1000 Vac, 1000 Vdc

Voltage type:  AC

Clearing (I2T):  1200000 at 1000 V, 1550000 at 1250 V

Pre arc (I2T):  245000

Watt losses:  120 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  2

Fitted with::  Type K Indicator for micro
