General specifications

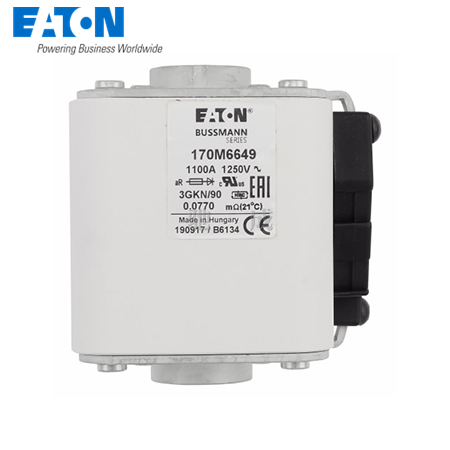

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M6649

UPC:  051712264952

EAN:  5996516020241

Product Length/Depth:  98 mm

Product Height:  79 mm

Product Width:  175 mm

Product Weight:  .001 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  1100 A

Voltage rating:  1250 V (IEC), 1300 V (UL)

Voltage type:  AC/DC

Clearing (I2T):  2800000 at 1000 V, 3600000 at 1250 V

Pre arc (I2T):  575000

Watt losses:  140 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fitted with::  Type K Indicator for micro
