General specifications

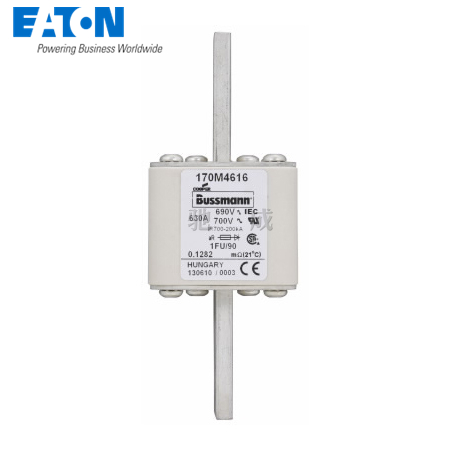

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4616

UPC:  051712259361

EAN:  5027590453714

Product Length/Depth:  62 mm

Product Height:  142 mm

Product Width:  230 mm

Product Weight:  170.6666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  630 A

Voltage rating:  690 V

Voltage type:  AC

Clearing (I2T):  350000 at 660 V

Pre arc (I2T):  52000

Watt losses:  80 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1
