General specifications

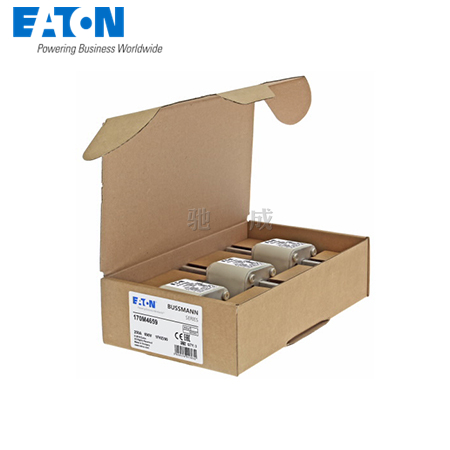

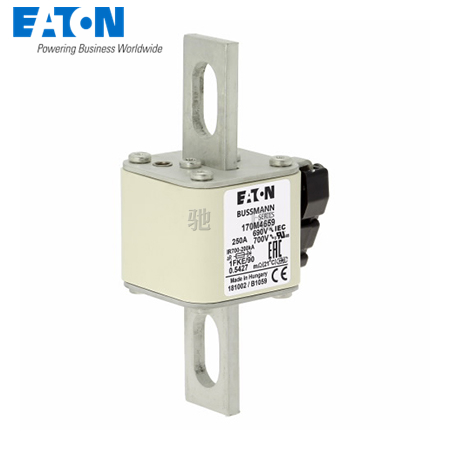

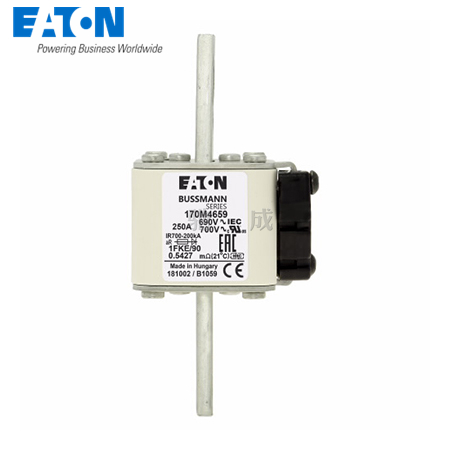

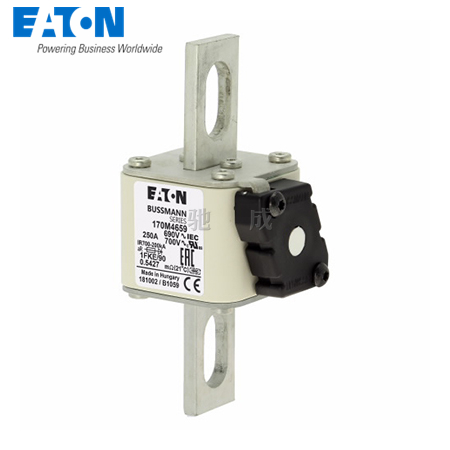

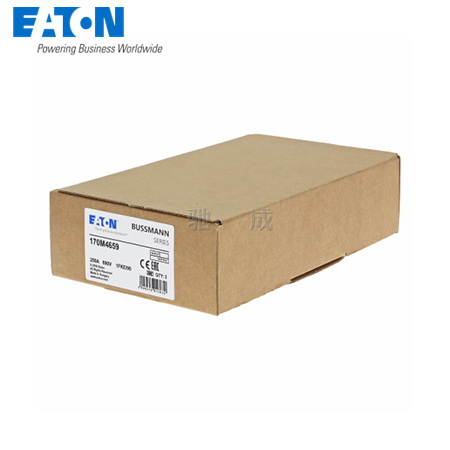

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4659

UPC:  051712259415

EAN:  5027590453776

Product Length/Depth:  245 mm

Product Height:  62 mm

Product Width:  142 mm

Product Weight:  184.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  250 A

Voltage rating:  690 V

Voltage type:  AC

Clearing (I2T):  21000 at 660 V

Pre arc (I2T):  3100

Watt losses:  55 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1

Fitted with::  Type K Indicator for micro
