General specifications

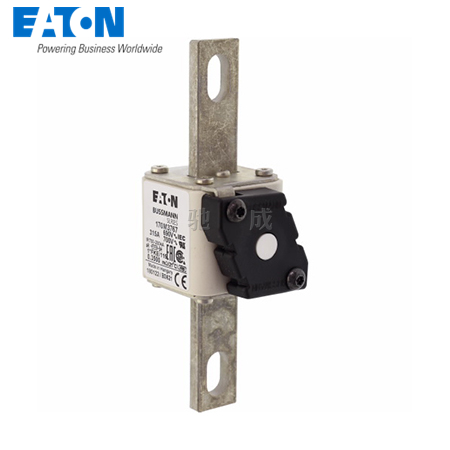

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3767

UPC:  051712257244

EAN:  5027590449991

Product Length/Depth:  92 mm

Product Height:  60 mm

Product Width:  163 mm

Product Weight:  176 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  315 A

Voltage rating:  690 V

Voltage type:  AC

Clearing (I2T):  46500 at 660 V

Pre arc (I2T):  7000

Watt losses:  50 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  1*

Fitted with::  Type K Indicator for micro
