General specifications

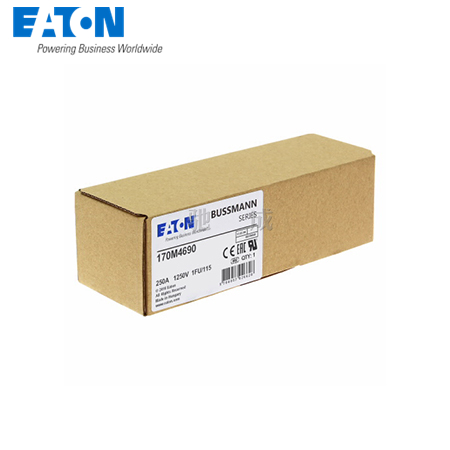

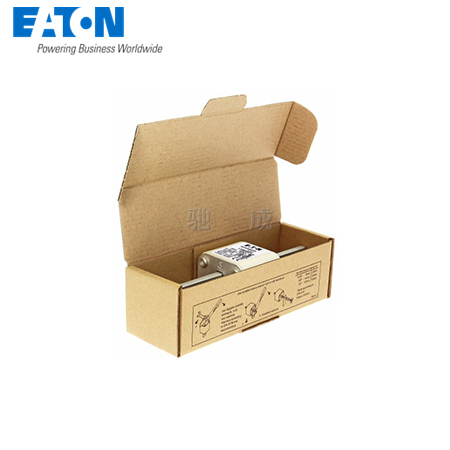

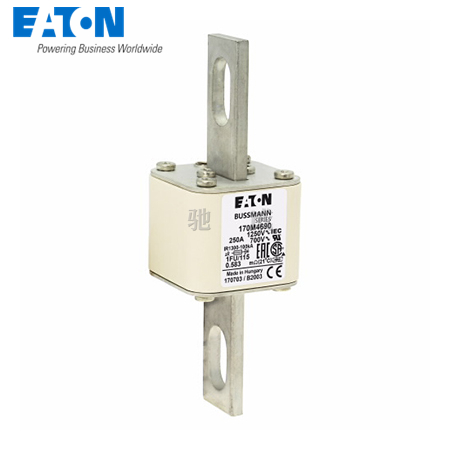

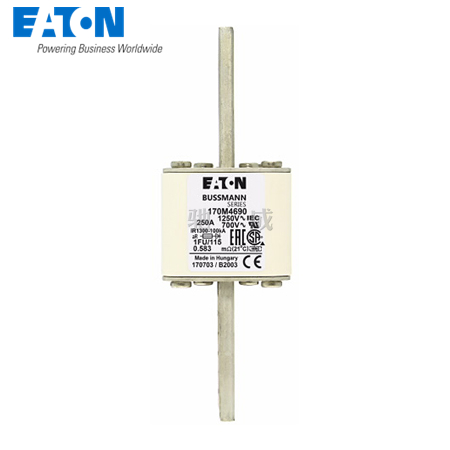

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M4690

UPC:  051712259507

EAN:  5027590313629

Product Length/Depth:  58 mm

Product Height:  54 mm

Product Width:  170 mm

Product Weight:  659 g

Compliances:  CE
RoHS Compliant
EAC

Certifications:  IEC
UL

Electrical data

Amperage Rating:  250 A

Voltage rating:  1250 V

Voltage type:  AC

Pre arc (I2T):  7750

Watt losses:  60 W

Breaking capacity:  100 kA

Class:  Class aR

Product specification

Fuse size:  1
