General specifications

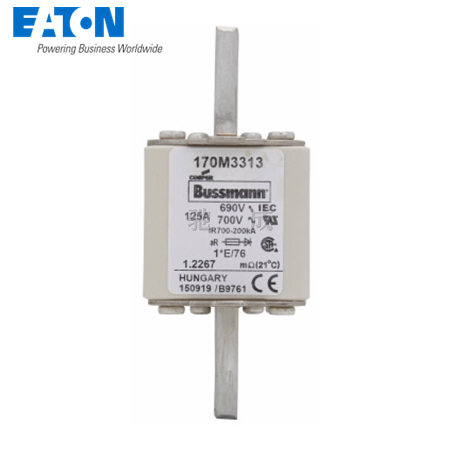

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M3313

UPC:  051712255622

EAN:  5704057021173

Product Length/Depth:  .001 mm

Product Height:  .001 mm

Product Width:  .001 mm

Product Weight:  .001 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  125 A

Voltage rating:  700 V (UL), 690 V (IEC)

Voltage type:  AC

Clearing (I2T):  3700 at 660 V

Pre arc (I2T):  550

Watt losses:  26 W

Class:  Class aR

Product specification

Fuse size:  1*

Fitted with::  Type T Indicator for micro
