General specifications

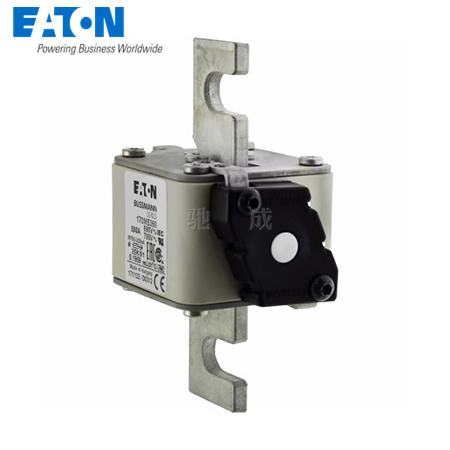

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M5360

UPC:  051712260961

EAN:  5027590456715

Product Length/Depth:  286 mm

Product Height:  66 mm

Product Width:  165 mm

Product Weight:  650.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  500 A

Voltage rating:  690 V

Voltage type:  AC

Clearing (I2T):  145000 at 660 V

Pre arc (I2T):  21500

Watt losses:  75 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  2

Fitted with::  Type K Indicator for micro
