General specifications

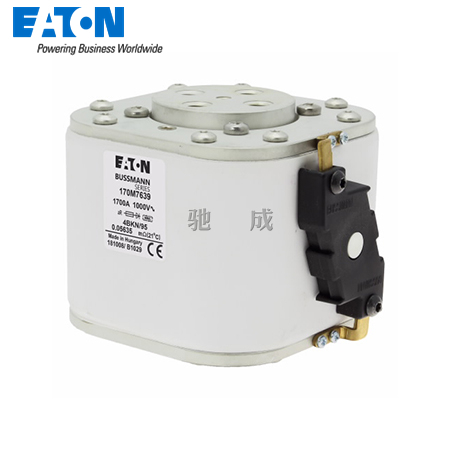

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M7639

UPC:  051712542791

Product Length/Depth:  105 mm

Product Height:  95 mm

Product Width:  120 mm

Product Weight:  .45 g

Warranty:  Not Applicable

Compliances:  Contact Manufacturer

Certifications:  IEC Rated

Electrical data

Amperage Rating:  1700 A

Voltage rating:  1000 V (IEC)

Voltage type:  AC

Clearing (I2T):  5000000 at 1000 V

Pre arc (I2T):  850000

Watt losses:  260 W

Product specification

Fuse size:  4
