General specifications

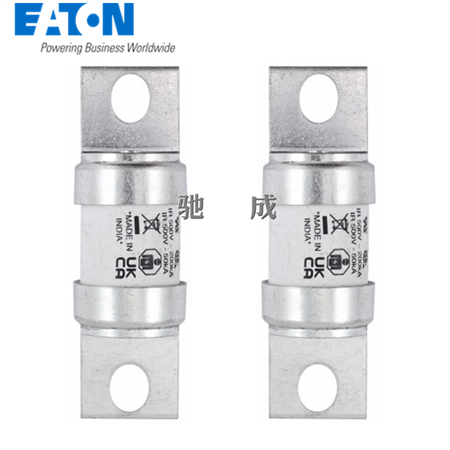

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWH-150B

UPC:  051712795845

EAN:  5027590020855

Product Length/Depth:  91 mm

Product Height:  30 mm

Product Width:  30 mm

Product Weight:  154 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
CSA Certified

Product specifications

Rated voltage DC:  500 V

Interrupt rating:  50 kAIC at 500 Vdc
200 kAIC at 1000 Vac

Center-to-center distance of connections:  74.09 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC/DC

Mounting method:  Stud

Amperage Rating:  150 A

Fuse type:  FWH-B

Rated switching capacity:  200 kA

Voltage rating:  500 Vac, 500 Vdc

Fuse indicator:  Non Indicating

Construction size:  Other

Clearing (I2T):  4600

Rated voltage AC:  500 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  M8

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  30 W

Type:  High speed fuse

Fuse shape:  Center bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  1100

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC
